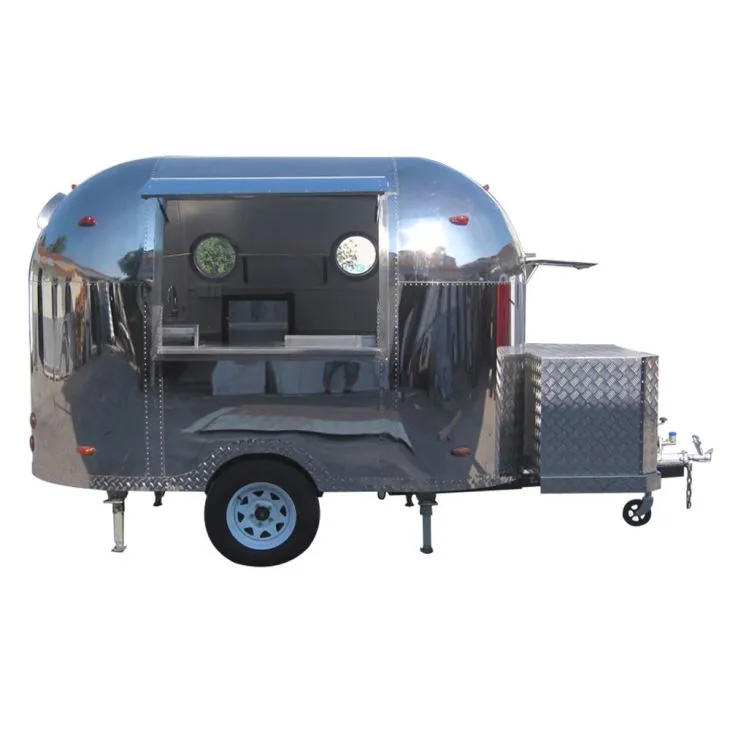

Fully Stainless Steel Airstream Food Trailer

Fully Stainless Steel Airstream Food Trailer

1.Materials Specifications

Chassis

l High-quality galvanized square tubes and plates are used to build chassis,full welding insure the chassis strong enough, the overall service life increase 25%.

l Dimension of galvanized square tube :100*50*4mm + 60*40*2mm.

l Suspension components: 5-leaf springs with axle; treated with rust resistant protective coating; load-bearing 3500pound per axle

l The Traction Rod made of oblique type galvanized square tube ,it is solid,safety and long life.Withstand maximum traction of 3,500 pounds.Maximum speed 80KM/H.

Body

l The body frame is welded by galvanized square tubes,rust proof ,solid .

l External wall is high quality stainless steel or painted color steel plate.

l Middle layer is 3cm heat insulation.

l Internal wall is High quality color steel plate.(stainless steel wall can be customized)

l One service(sales) window in front (sliding window with canopy customized),one door (70cm wide)with lock.Extend stainless workbench by the service window.

l 4 strong jacks under the chassis that can help the trailer stand when working or stop.

l All the sharp parts of the body are covered with aluminum alloy, make the trailer beautiful and safety enough.

l Led lights on the ceiling.Water-proof and rain-proof tested to ensure that there is no any leakage before delivery.

Flooring

l 3 layers: 2mm anti-skid embossed aluminum+10mm plywood + galvanized sheet.

l Come with drain on the ground ,it is convenient for cleaning and washing.

Axles&Wheels:

lSingle axle and two wheels. However,different models are different.

Water system:

l 1,2 and 3 water sinks , hot and cold water taps.(customized)

l A fresh water tank, a waste water tank (25L/tank standard)(can be customized)

l Come with12V mini water pump and on/off control switch.

Electricity system:

l High-power distribution box added with safety switch + external cables, connection for city electricity is available.Come with tail light system, 7-pin socket prepared.

l Different kinds of standard sockets can be installed.Cable layout as need.

Work benches:

l Stainless steel work benches on both sides, W*H: 450*900mm or 600*900mm,the height and width are adjustable to meet the cooking equipment and machines.

l 2 layers stainless cupboard under the workbench.the sliding door can be customized.

l All the inner layout can be customized as your requirement to meet different function not only for fast food business,such as fruit,vegetable,flower,gift and so on.

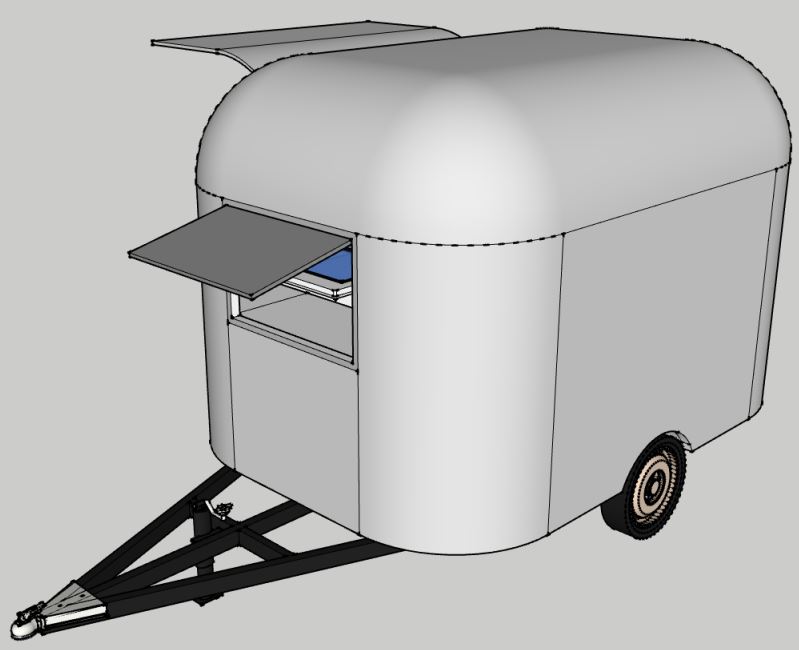

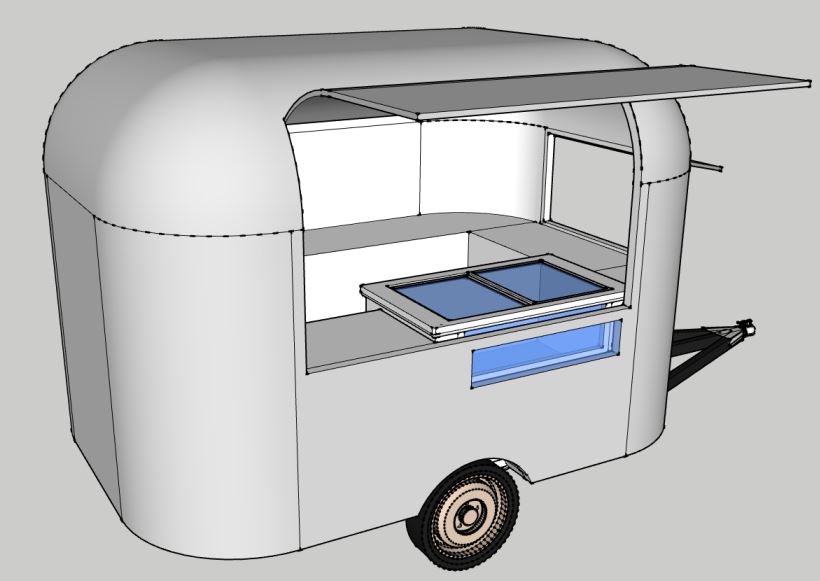

2.3D Designs for Airstream Food Trailer

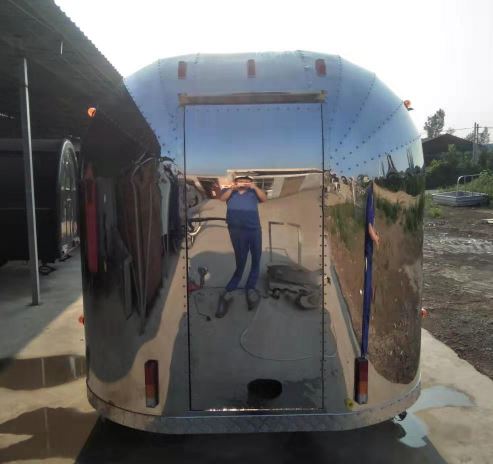

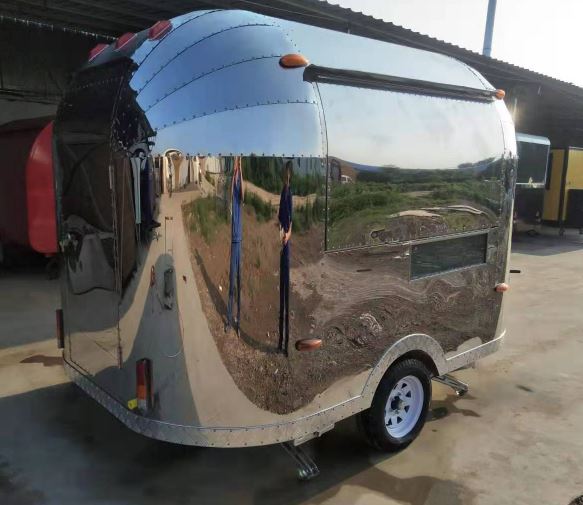

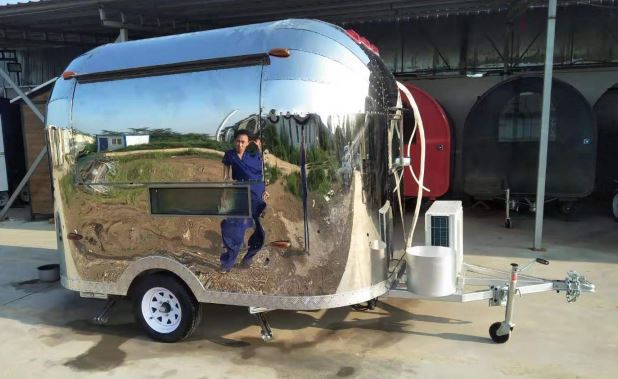

3.Detailed Photos for Airstream Food Trailer







4.What is included in the basic price?

1.stainless workbench both sides
2.stainless shelf rack on the back side wall .
3.stainless cupboard under workbench.
4.single stainless water sink.
5.anti-skid aluminum floor with drain.
6.Led lights on the ceiling.
7.standard sockets (6 pieces).
8.a big service window.
9.4 jacks under the chassis.
10.a door with lock.
11.4 small wheels under the chassis.
12.tail lights system
13.axles with wheels
14.towbar with guide wheels
15.safety chain
More function and machines can be customized and additional cost.

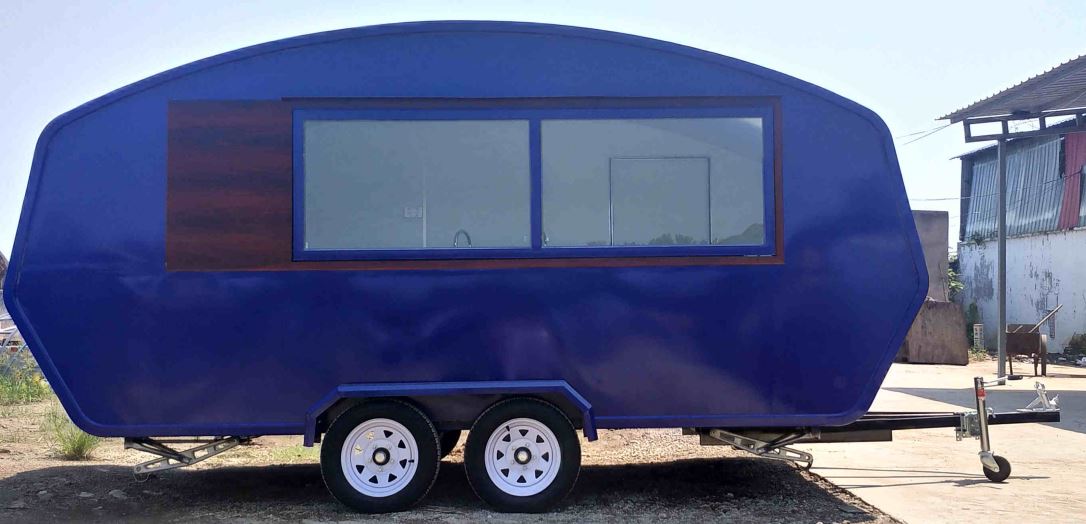

5.Other Popular Models For Your References

If you are interested in,feel free to contact us via sue@gloryfoodtruck.com
Whatsapp/Wechat/Mob: 86-15093205134

So that we can customize the unique food cart for you !
